| Standard | ASME, ASTM, BS and DIN |
| Material | Carbon Steel & Alloy Pipes(Seamless), Carbon Steel ERW(Welded Type), Carbon Steel (Submerged Arc Welded) |
| Sizes : | From 1/2″ to 80″ |
| Schedule: | 20/30/40/60/80/120/XXS/STD and XS |
| Grade: | A53 Gr.B, A106 Gr.B, APL5L Gr.B X42, X52 & A333-6A53-A, A53-b and APL 5L Gr.BAPI 5L Gr.B, X52 and X60 |
| Length: | 6,12Mtr, DRL, SRL7 |
| Finish: | Black or Galvanized. |

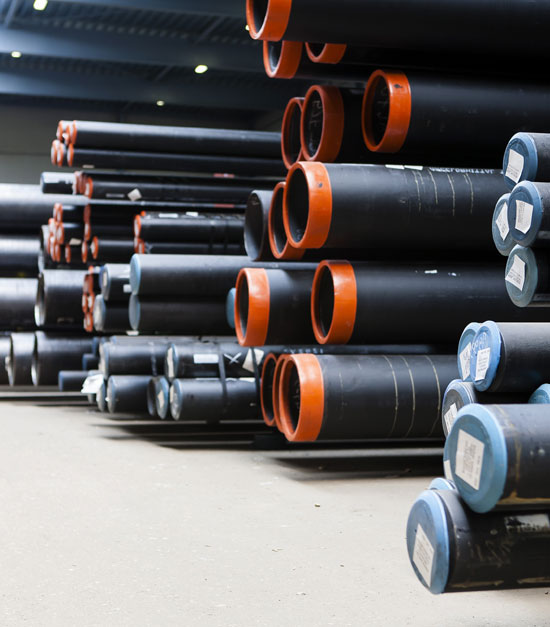

Electromechanical
CS Pipes
SS Pipes
| Standard | ASME, ASTM, BS and DIN |
| Material | Stainless Steel(Seamless), Stainless Steel Welded(ERW/EFW) |
| Sizes : | 1/8″ to 12″ |
| Schedule: | 10/20/40/80/120/XXS//SX/STD |
| Grade: | A312-304/304L, 316/316LA312-304/304L, 316/326L A358 |
| Length: | 6, 12Mtr, DRL, SRL7 |

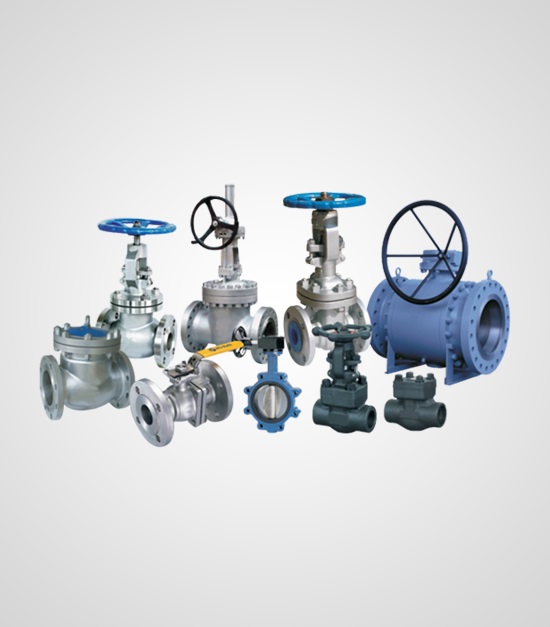

Valves
We supply Valves in diffrent size we also supplies customised SS Buttweld Fittings. We provide superior and reputed brands of valves.
Pressure Range: Class 150 tO 3000
Connection: NPT, SW, Flanged
Types:
- Gate Valves
- Ball Valves
- Check Valves
- Butterfly Valves
- Safety Valves
- Needle Valves
- Resilient Seated Gate Valves
- Pressure Reducing Valves
- Vaccum Breaker
- Water Hammer Arrestor
Materials:
- Carbon Steels 105 and ASME SA216 Grade WCB
- Stainless Steel CF8M, LF2, 204, 316
- Cast Iron
- Bronze
- Brass

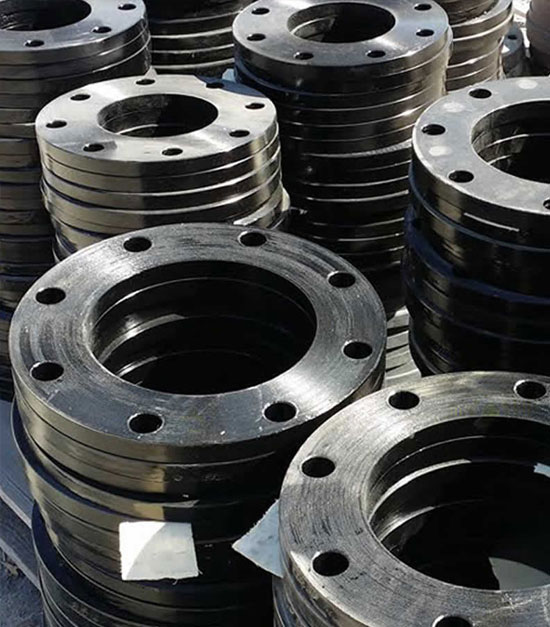

CS Flanges
| Type | Welded Neck, Slip on, Blind, Socket Weld, Lap Joint, Threaded Reducing, Long Welded Neck, Orifice , Drip Rings, Spectacle Plates, Spacers, Spades |
| Manufacturing Standards: | ASME,AWA, DIN,ANSI,BS |
| Sizes : | 1/4″ to 60″ |
| Pressure Rate: | Class 150 to 1500 |
| Thickness: | All Schedule |
| All Schedule | A105, A105N, SA694, F42,/F46/F52/F60/F65, A350/LF1/ LF2LF3LF6, SA707, L5 |
| Finish: | Black or Galvanized. |

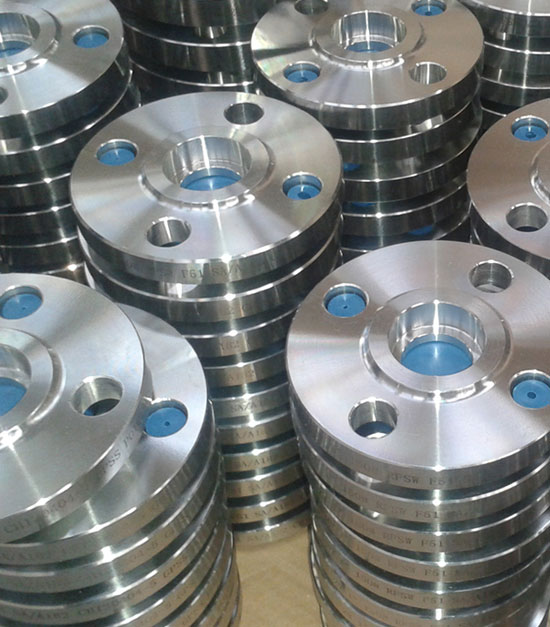

SS Flanges
| Type | Welded Neck, Slip on, Blind, Socket Weld, Lap Joint, Threaded Reducing, Long Welded Neck, Orifice , Drip Rings, Spectacle Plates, Spacers, Spades |
| Manufacturing Standards: | ASME,AWA, DIN,ANSI,BS |
| Sizes : | 1/4 to 24″ |
| Thickness : | All Schedule |
| Standard and Grade : | SA182/F304/F304L/F304H/F316/ F316L/F347/A182/F5/F11 |
| Pressure Rate : | Class 150/300/400/600/900/1500&2500 |

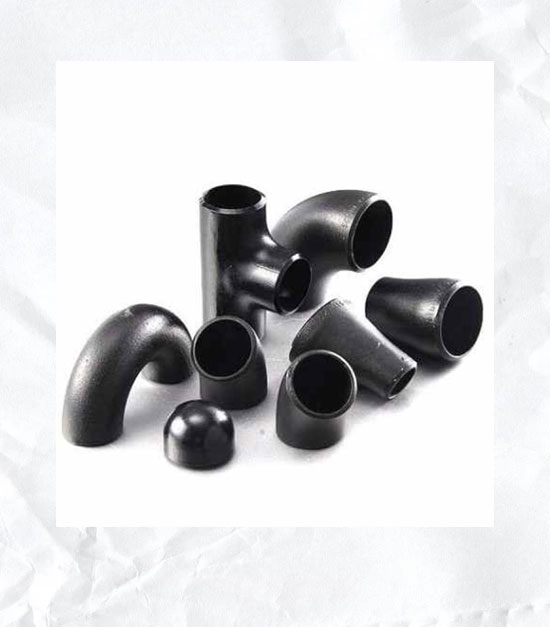

Carbon Steel ButtWeld Fittings
| Manufacturing Standard : | ASME, AWA, DIN, ANSI, BS |
| Sizes : | 1/4″ to 60″ |
| Pressure Rate: | Class 150 to 1500 |
| Thickness : | All Schedule |
| Standard and Grade : | SA234 WPB, MSS-SP75 WPHY 42 46 52 60 65 70, SA420 WPL6 |
| Finish: | Black or Galvanized. |

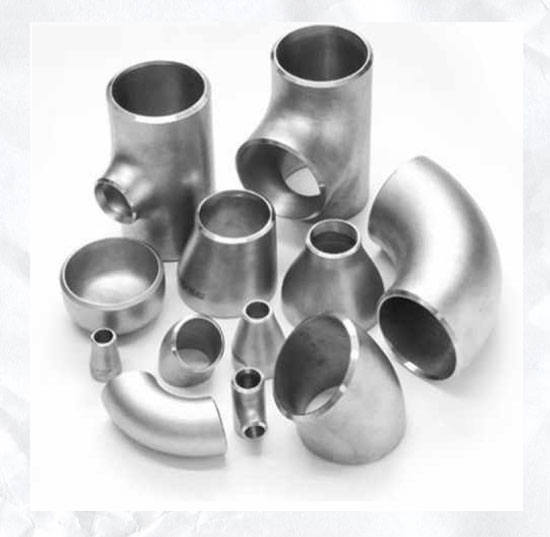

Stainless Steel ButtWeld Fittings
| Sizes : | 1/2″ to 36″ |
| Pressure Rate: | Class 150 to 9000 |
| Thickness : | All Schedule |
| Standard and Grade : | SA 403 WP304/WP304L/ WP304H / WP316/WP316L/WP347, SA234 WP1,WP11,WP22 |
Forged Carbon Steel Fittings
| Manufacturing Standards: | ASME,AWA, DIN,ANSI,BS |
| Sizes : | 1/4″ to 6″(NPT & SW) |
| Pressure Rate: | 3000 to 9000 |
| Thickness: | All Schedule |
| Standard and Grade: | A105, A 350 LF1/LF2/LF3/LF4/LF5/LF5/LF6 |
| Finish: | Black or Galvanized. |

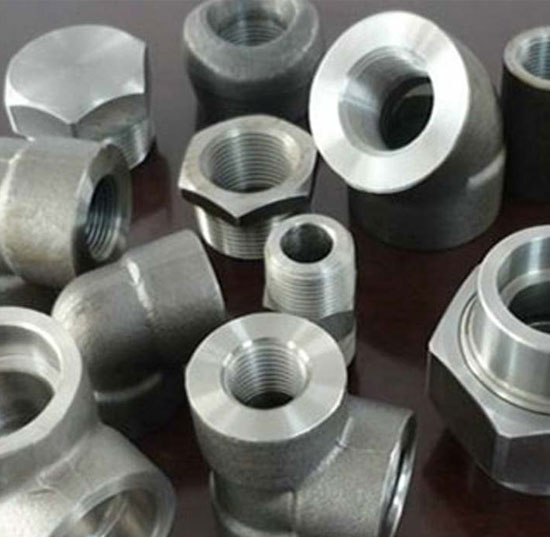

Forged SS Fittings
| Manufacturing Standards: | ASME,AWA, DIN,ANSI,BS |
| Sizes : | 1/4″ to 4″(NPT & SW) |
| Pressure Rate: | 3000 to 9000 |
| Thickness: | All Schedule |
| Standard and Grade: | A182 F304/304L, F316/316L , F321, SA/A182 F5 / F11 |
| Finish: | Black or Galvanized. |

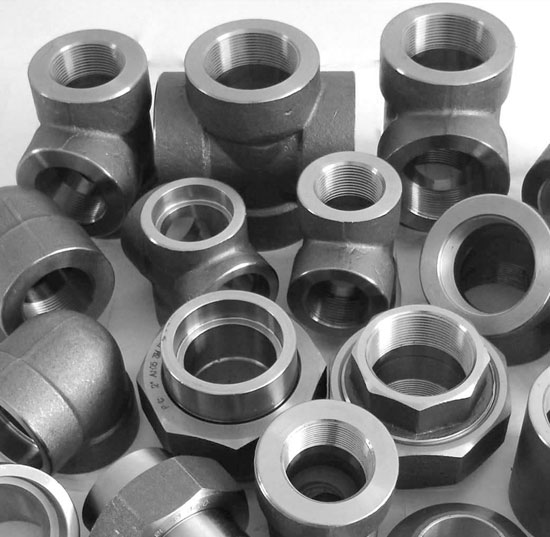

Forged Malleable – Iron Fittings
| Manufacturing Standards: | ASME,AWA, DIN,ANSI,BS |
|---|---|
| Sizes : | 1/4″ to 6″(NPT & BSPT ) |
| Pressure Rate: | 150,300 |
| Thickness: | All Schedule |
| Standard and Grade: | A197 |
| Finish: | Black or Galvanized. |
